High-purity nitrous acid (HONO) generation and quantification using broadband cavity-enhanced absorption spectroscopy (BBCEAS)

Alexis P. Harper, Callum E. Flowerday, Zachary Giauque, Kaitlyn Brewster, Ryan Thalman, and Jaron C. Hansen
Abstract

Nitrous acid (HONO) is a key atmospheric precursor to hydroxyl radicals (OH), which drive oxidation processes in the troposphere. Accurate quantification of HONO is essential for modelling atmospheric chemistry but is often challenging due to low ambient concentrations, significant wall losses from instruments with inlets, and interference from co-produced nitrogen dioxide (NO2). Laboratory generation methods frequently struggle to produce HONO in both high purity and usable quantities. This study introduces a simple, scalable method for generating high-purity HONO relative to NO2 via the reaction of hydrochloric acid (HCl) and sodium nitrite (NaNO2) in a multi-bubbler system. The method incorporates a thermal “catch and release” mechanism to selectively trap HONO and separate it from NO2 prior to analysis. While the melting point of NO2 is well-established at 9 °C, the melting point of HONO was monitored and determined to be 4 °C, enabling the thermal separation mechanism to function effectively. Broadband cavity-enhanced absorption spectroscopy (BBCEAS) was used for detection and quantification in the 329–344 nm region. Systematic optimization of bubbler temperatures, carrier gas flow rates, capture durations, and moisture levels yielded HONO purities greater than 96 %. This method enables reliable and flexible production of high-purity HONO relative to NO2, making it well-suited for use in laboratory-based chamber studies and instrument calibration applications.

Share
1 Introduction

Nitrous acid (HONO) plays a pivotal role in atmospheric chemistry due to its photolysis at or below 579 nm, producing hydroxyl radicals (OH) via Reaction (R1), which initiate oxidation processes in the troposphere (Burkholder et al., 2020; Cox et al., 1976a). At lower wavelengths, less than 362 nm, HONO photolyzes to produce NO2 via Reaction (R2), which also contributes to oxidative processes in the troposphere (Burkholder et al., 2020).

(R1)HONO+hv<579nmOH+NO(R2)HONO+hv<362nmH+NO2

HONO is introduced into the atmosphere both through direct emissions and secondary formation. Primary emissions occur from combustion processes such as biomass burning, industrial burning, domestic heating, and internal combustion engines (Pitts et al., 1984; Kurtenbach et al., 2001; Xu et al., 2015). Secondary atmospheric HONO formation involves heterogeneous reactions, including the hydrolysis of NO2 on humid surfaces (Finlayson-Pitts et al., 2003) and NO2 reduction by adsorbed hydrocarbons (Gutzwiller et al., 2002), as well as homogeneous gas-phase reactions and photolysis of gaseous nitrophenols. Su et al. (2011) identified soil microbial processes as a potential source of HONO through nitrite conversion. Additionally, in winter, HONO concentrations can be enhanced due to increased photolysis of nitrate in snowpacks and the presence of temperature inversions, which trap pollutants near the surface, decrease vertical mixing, and extend the lifetime of precursors, promoting HONO formation pathways (Honrath et al., 2002; Beine et al., 2008; Michoud et al., 2014).

While HONO formation mechanisms vary by location, its atmospheric significance is consistently linked to its role in OH radical production. During daylight hours, HONO photolysis serves as a major source of OH, especially in the early morning when other photochemical sources like ozone (O3) and formaldehyde (HCHO) are less active (Kleffmann, 2007). OH radical governs atmospheric oxidative capacity and contributes to the degradation of pollutants, influencing the formation of ground-level ozone and photochemical smog, both hazardous to human health (Elshorbany et al., 2010). Numerous studies have quantified the relative contributions of various OH initiation pathways, showing that HONO plays a major role in the lower atmosphere, even outside of urban settings (Ren et al., 2003, 2006; Elshorbany et al., 2010; Dusanter et al., 2009). Due to its importance, a comprehensive understanding of HONO sources and behaviour is essential for accurately modelling atmospheric composition and predicting pollutant lifetimes.

Reliable detection and quantification of HONO remain challenging due to interference from other nitrogen oxides and its low ambient concentrations. Various techniques, including chemiluminescence (Kanda and Taira, 1990), laser-induced fluorescence (LIF) (Bottorff et al., 2021; Ning and Pfab, 1997), differential optical absorption spectroscopy (DOAS) (Febo et al., 1995), Fourier-transform infrared spectroscopy (FTIR) (Gingerysty and Osthoff, 2020), long path absorption photometry (LOPAP) (Heland et al., 2001; von der Heyden et al., 2022), cavity ring-down spectroscopy (CRDS) (Gingerysty and Osthoff, 2020), ultraviolet (UV) absorption (King and Moule, 1962; Stockwell and Calvert, 1978), and broadband cavity-enhanced absorption spectroscopy (BBCEAS) (Dixneuf et al., 2022; Gherman et al., 2008; Wu et al., 2012; Wu et al., 2014; Duan et al., 2018; Jordan and Osthoff, 2020), have been employed for HONO detection. Each method presents trade-offs in sensitivity, selectivity, and operational complexity.

In parallel, the generation of HONO in laboratory settings has been essential for calibrating instruments and simulating atmospheric processes. Traditional methods typically rely on acid displacement reactions, where a proton donor (e.g., H2SO4, HCl) reacts with a nitrite salt. However, existing methods often produce significant amounts of NO2 alongside HONO, complicating spectral quantification, particularly for spectroscopic methods where spectral overlap occurs (King and Moule, 1962; Stockwell and Calvert, 1978; Cox and Derwent, 1976b). While some techniques achieve high-purity HONO, they often involve complex setups, such as the use of permeation devices, or yield low concentrations (Gingerysty and Osthoff, 2020; Lao et al., 2020; Reed et al., 2016; Villena and Kleffman, 2022).

Early generation methods, such as bubbling air through a solution of 0.1 M sodium nitrite with 1.4 %–2.5 % sulfuric acid, produced HONO vapours with purities around 50 % (Cox and Derwent, 1976b). Subsequent strategies used oxalic acid sublimed onto sodium nitrite, achieving purities of 50 %–90 % depending on water content (Braman and De la Cantera, 1986). Flow reactor designs improved stability and control, achieving > 90 % purity at low concentrations by dynamically mixing sulfuric acid with sodium nitrite (Taira and Kanda, 1990).

More recently, hydrochloric acid (HCl) has emerged as a viable proton donor for producing high-purity HONO via Reaction (R3).

(R3) HCl + NaNO 2 HONO + NO 2 + NaCl

Febo et al. (1995) developed a permeation-based system where HCl vapour reacted with solid NaNO2 in a humidified gas stream, achieving HONO purities of 99.5 %. Other groups have refined this concept, though some reported that HONO concentrations must remain low to avoid disproportionation (Stutz et al., 2000). This study aims to address these limitations by presenting a simple and scalable method for generating HONO using HCl as the proton donor. By thermally separating HONO from NO2, the method achieves high purity relative to NO2 while producing sufficient quantities for laboratory use and experimental applications. Beyond controlled environments, its simplicity, reproducibility, and scalability (up or down) make it suitable for integration into diverse analytical setups and for deployment in long-term atmospheric monitoring both in chamber setups and as standards and calibration sources for field monitoring sites.

2 Experimental

2.1 HONO generation setup

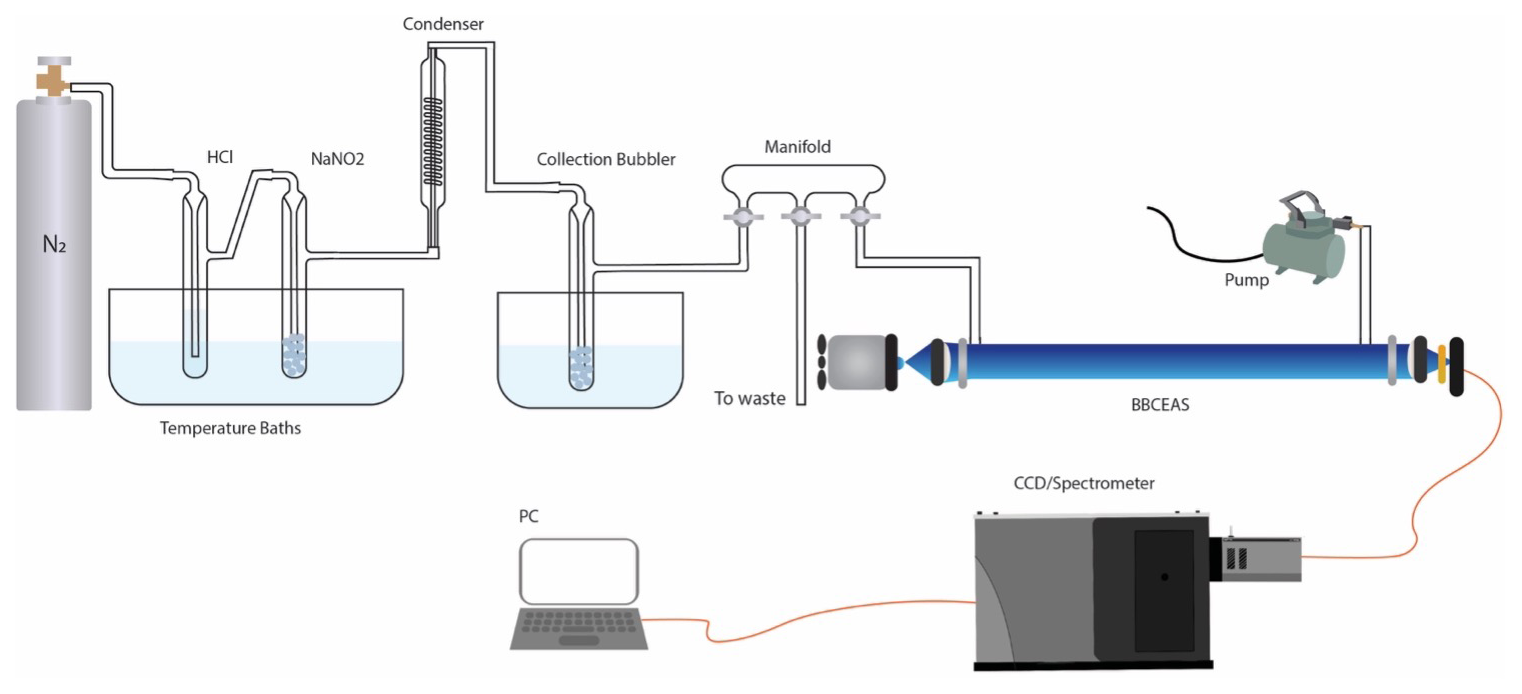

The experimental system, shown in Fig. 1, comprises a series of three bubblers immersed in controlled temperature baths. Nitrogen (N2) serves as the carrier gas throughout the system, with tested flow rates ranging from 100–500 standard cubic centimetres per minute (SCCM). The first bubbler contains 12 M HCl, while the second houses a NaNO2 slurry dispersed over 4 mm glass beads to maximize the surface area for the gas-phase reaction. These two bubblers are held in a constant temperature bath, with tested temperatures ranging from 20 to 40 °C. The third bubbler, the capture stage, contains dry 4 mm glass beads and is maintained in a separate temperature bath at tested temperatures ranging from 5 to 8 °C to condense and trap HONO.

https://amt.copernicus.org/articles/18/7221/2025/amt-18-7221-2025-f01

Figure 1Nitrogen gas flows through the experimental system to produce NO2 and HONO. HONO is captured on the final bubbler's beads, while NO2 is passed through the manifold to waste. After the collection period, reactant bubblers are bypassed and the collection bubbler is heated up to release HONO, which flows through the BBCEAS cavity to be analysed.

Download

Between the second and third bubblers, a condenser is set up to lower the gas mixture temperature before entering the collection bubbler. Antifreeze solution is introduced to the condenser from the collection bubbler temperature bath, making it the same temperature as the collection bubbler, which gives HONO time to cool and freeze at negative temperatures. A dilution manifold is situated between the HONO generation system and the BBCEAS cavity. During the capture phase, the manifold is directed toward waste only, allowing NO2 to escape, while HONO is captured on the bubbler's beads. After a 1 h reaction and capture phase, the HCl and NaNO2 bubblers are bypassed, and nitrogen is introduced at a flow rate of 1 SLM. The capture bubbler is then gradually heated to 30 °C to release the trapped HONO for analysis. The manifold exit leading to the BBCEAS is then opened and allows the mixture to be diluted by a factor of two, ensuring the measured extinction falls within the instrument's linear response range and enabling accurate quantification. Adjusting the flow rate in this last step can alter the concentration of HONO exiting the system.

2.2 Thermal “catch and release” mechanism

The melting point of HONO was measured to optimize its selective capture. While the melting point of NO2 is well-established at 9 °C (O'Neil et al., 2013), HONO's melting point was identified by incrementally lowering the capture bubbler temperature and monitoring HONO release. This information guided the selection of capture temperatures that maximize HONO collection while minimizing NO2 interference.

2.3 HONO detection using BBCEAS

Broadband cavity-enhanced absorption spectroscopy (BBCEAS) has been used for detection of a wide range of molecules including short chained alcohols, formaldehyde, glyoxal (CHOCHO), methyl glyoxal (CH3COCHO) iodine oxide (IO), water vapour (H2O), oxygen dimers (O4), sulphur dioxide (SO2), NO2, and OH radical. (Thalman and Volkamer, 2010; Washenfelder et al., 2016; Thalman et al., 2022; Flowerday et al., 2023a, b, 2025) Briefly, BBCEAS employs highly reflective mirrors (R> 99.9 %) to form an optical cavity that amplifies a 1 m base pathlength to an effective sample pathlength of 2000 m. The cavity consists of two 1′′ planar-concave AR-coated mirrors (Layertec 109657) mounted 1 m apart within a carbon pultruded tube cage system (Goodwinds) using 3D-printed PLA brackets. The cavity is enclosed in a brass pipe sealed against the mirrors. The light source is a UV-LED centred at 340 nm (Roithner Lasertechnik, DUV340-SD353EL-31), mounted on a copper heat sink. A Peltier cooler (Digi-Key 102-166-ND), sandwiched between the LED and heat sink and controlled by a precision temperature controller (Meerstetter TEC-1091), maintains the LED at 15 ± 0.1 °C to ensure stable light intensity. A fan is mounted on the back of the heat sink for additional thermal management. Light is guided through the cavity using UV AR-coated collimating and focusing optics (ThorLabs). A 340 ± 13 nm bandpass filter (Edmund Optics, 84092) ensures that only the desired wavelength reaches the fibre optic cable (Thorlabs BFL200HS02), which directs the light to a CCD detector cooled to 20 °C (SR-303i). For each experiment, 30 spectra with 2 s integration times were accumulated to yield one spectrum per minute. The optical setup is shown in Fig. 2.

https://amt.copernicus.org/articles/18/7221/2025/amt-18-7221-2025-f02

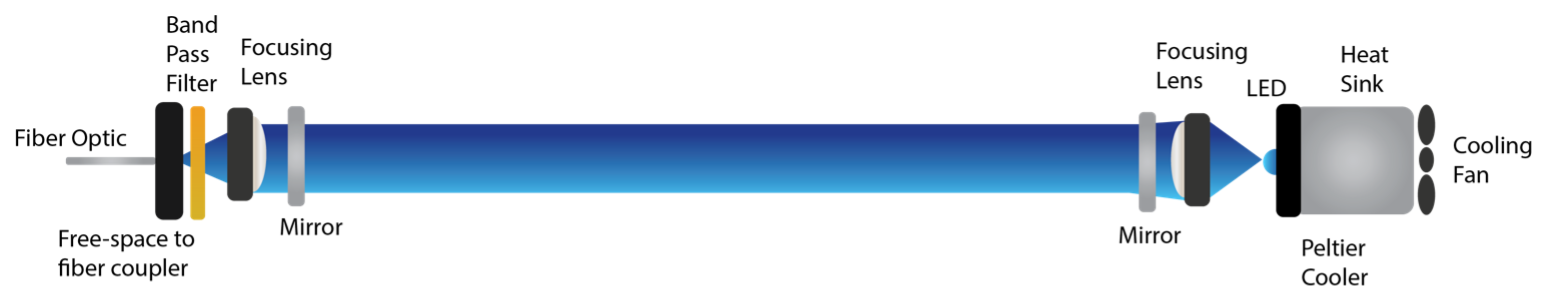

Figure 2The BBCEAS cavity is comprised of a broadband light source coupled into an optical cavity consisting of two highly reflective mirrors, increasing the pathlength of the light. The transmitted light is collected and directed into a spectrometer via an optical fibre, where it is dispersed and recorded using a CCD detector.

Download

A closed cavity configuration was utilized for the BBCEAS, using a pump to pull the sample through the cavity at a rate of 2 SLM from the manifold. The known Rayleigh scattering of N2 and He (εRay,N2(λ), ε{Ray,He}(λ)), along with the observed intensity drop between spectra (IN2(λ) and IHe(λ)) and the distance between the mirrors (d0), were used to calculate the reflectivity of the mirrors (R(λ)), as seen in Eq. (1) and Fig. 3, by flowing these gasses through the cavity directly prior to the experiment. This reflectivity value, along with the intensity of the reference spectrum (I0(λ)) and the spectrum of interest (I(λ)), was then used to determine extinction coefficients (ϵ(λ)), as seen in Eq. (2), to which the known literature cross-sections of HONO and NO2 could be fit (σ[NO2], σ[HONO]). From these fits, a concentration of the species ([NO2],[HONO]) could be calculated using Eq. (3). Using a series of concentrations over time, a total amount of HONO captured, measured in nanomoles, was calculated for each experiment. Figure 4 shows the representative fit of experimental data to HONO and NO2, as well as the residuals from this fit.

(1)Rλ=1-d0IN2λIHeλεRay,N2λ-εRay,Heλ1-IN2λIHeλ,(2)ελ=1-Rλd0+εRay,AirλI0λ-IλIλ,

where I0 is the intensity of light in N2, and I is the intensity of light in our target sample.

(3) ε λ = σ NO 2 [ NO 2 ] + σ HONO [ HONO ] + polynomial
https://amt.copernicus.org/articles/18/7221/2025/amt-18-7221-2025-f03

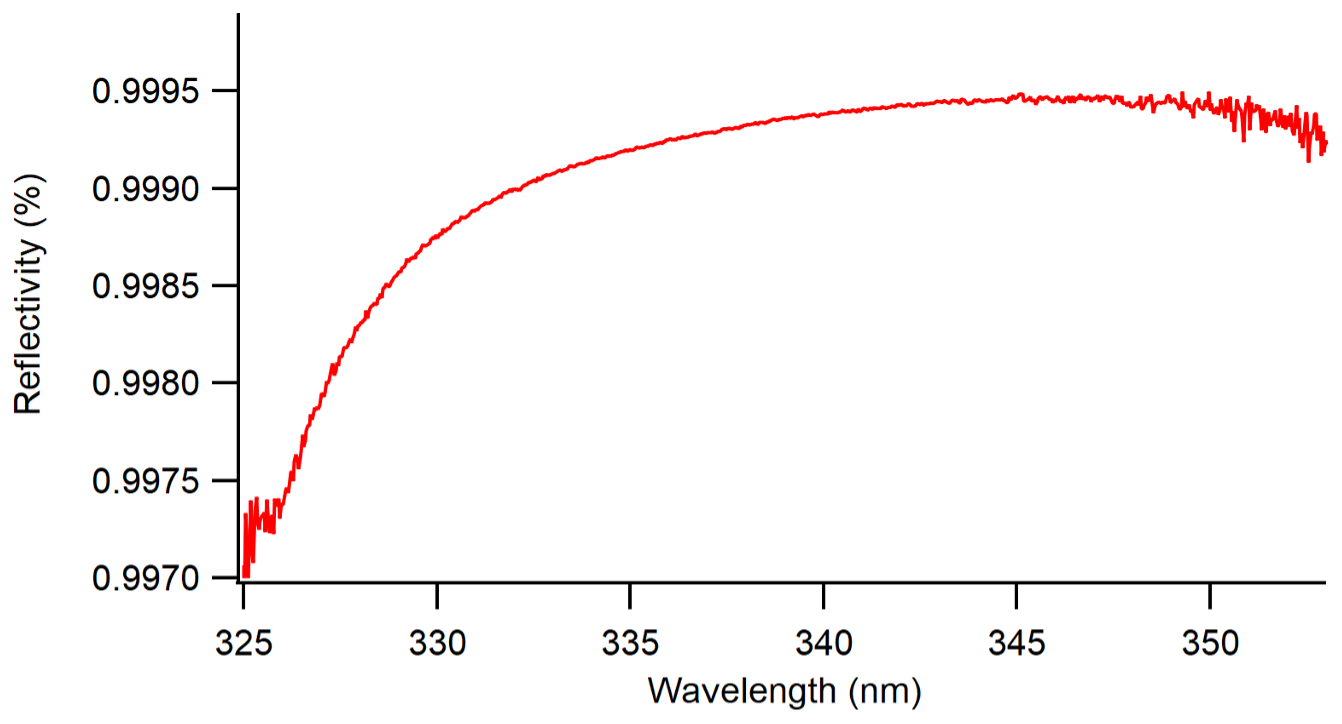

Figure 3Reflectivity curve of mirrors. Mirrors are centered at 350 nm, where they peak at 99.95 % reflectivity and the light source emits with a maximum at 330 nm, resulting in the observed overlap. Absorbance is measured between 329 and 344 nm, where there was sufficient light and reflectivity for detection and sensitivity.

Download

https://amt.copernicus.org/articles/18/7221/2025/amt-18-7221-2025-f04

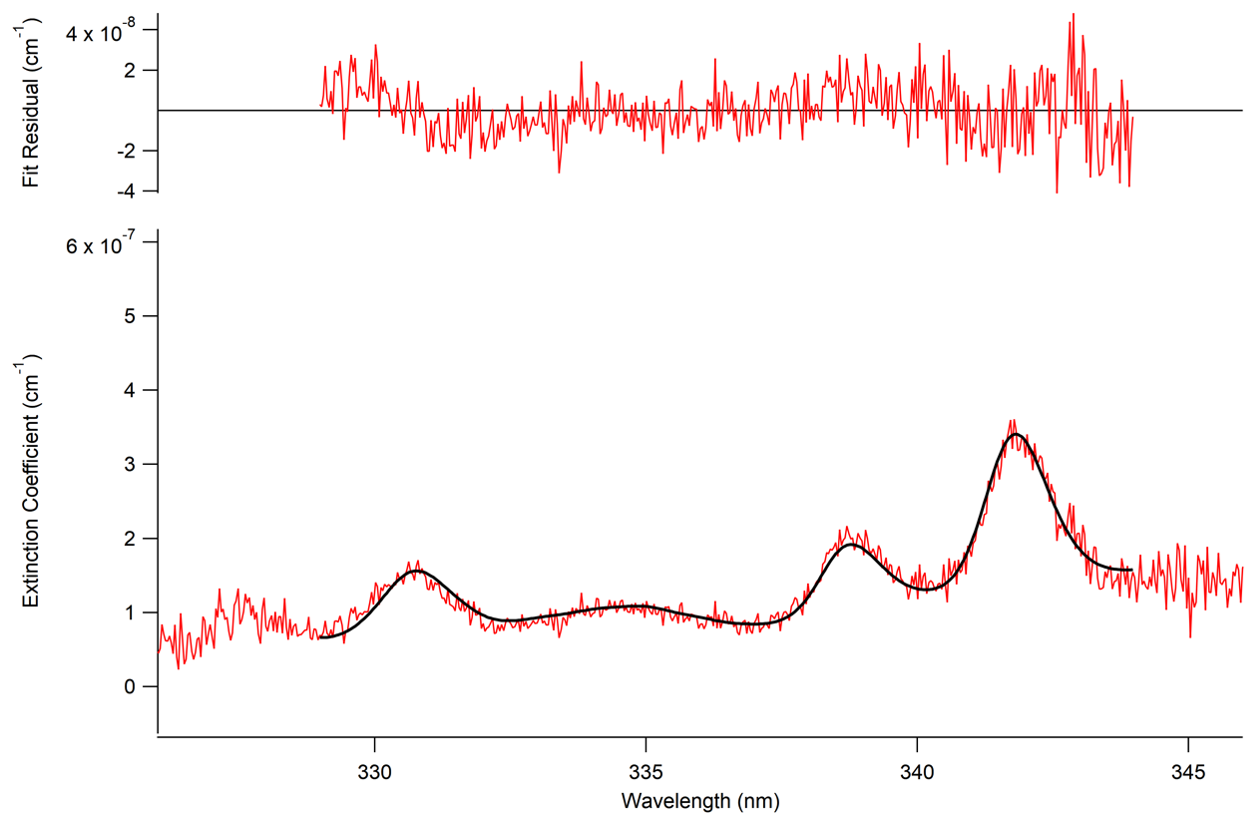

Figure 4Fit of observed data (black) to the measured extinction coefficient (red) to determine the concentration of HONO and NO2 in sample. Fit residual seen above.

Download

Fit residuals were consistently unstructured, white noise distributed around zero, and an order of magnitude or smaller lower than the fitted extinction of HONO which serves as an indication of a good fit. The 1 min limit of detection (LOD) calculated from this fit residual, while measuring both NO2 and HONO, is 6.56 × 108 molec. cm−3 for HONO and 4.94 × 108 molec. cm−3 for NO2, which is at least 3 orders of magnitude below the concentrations measured in this experiment thus indicating confidence in the fit to the extinction. The fit is not stretched or shifted at all and, therefore, had negligible bias towards either species when trying to fit the other.

The total 1σ uncertainty in HONO and NO2 was determined by combining all independent sources of error, including uncertainties in temperature, cavity length, pressure, and the reported absorption cross-section uncertainties under these conditions of 5 % for HONO (Bongartz et al., 1991) and 3 % for NO2 (Vandaele et al., 1998). The total uncertainty was determined by combining the individual uncertainties in quadrature to be 3.5 % for NO2 and 5.3 % for HONO.

3 Results and discussion

3.1 HONO melting point determination

The melting point of HONO was measured by monitoring its capture and subsequent release at decreasing bubbler bath temperatures. The first bath was kept constant at 30 °C as HONO and NO2 were being generated. The second temperature bath, containing the third bubbler, temperature was stepped down incrementally until the temperature of the bath reached 10 °C, which is below the known melting point of NO2. As seen in Fig. 5, below 4 °C, HONO recovery ceased, indicating this as the approximate melting point of HONO. NO2, by contrast, remained in the gas phase until the bath was cooled below 9 °C. This was beneficial as it is then possible to freeze out and capture HONO, as well as allow for the majority of NO2 to pass through the capture bubbler due to the 5 °C difference in melting points.

https://amt.copernicus.org/articles/18/7221/2025/amt-18-7221-2025-f05

Figure 5Concentration vs. time plot of NO2 (brown) and HONO (blue) as temperature is changed incrementally over time to determine the melting point of HONO.

Download

3.2 Capture bubbler optimization

Before attempting the use of the capture bubbler to further increase the purity of HONO being produced, initial tests without a capture stage yielded a HONO:NO2 ratio of 0.46 : 1 (31.3 ± 1.9 % purity). This and following experiments kept a constant reactant bubbler bath temperature of 30 °C, containing the two bubblers with HCl and the NaNO2 slurry, and a flow rate of N2 gas through the system set at 300 SCCM. To start, the capture bubbler bath was set to 8 °C, intending to allow any excess NO2 to pass through the system before freezing out, while HONO adhered to the beads. Implementing a capture bubbler at 8 °C improved the ratio to 2.27 : 1 (69.4 ± 1.8 %). Further experiments raised the temperature of the capture bubbler bath incrementally to find an optimal temperature for HONO capture. As the temperature varied, the amount of HONO captured on the beads stayed relatively constant from 8 to 6 °C, while purities rose, meaning less NO2 was being captured. Purity maximized at 5.5 °C (90.4 ± 0.5 %), albeit with a slightly reduced HONO yield, decreasing from 41 to 37 nmol captured. Raising the temperature beyond 5.5 °C produced similar purity of HONO, but in smaller amounts, meaning less of both HONO and NO2 were being captured on the beads. Figure 6 shows how purity and amount of HONO changed over different capture bubbler bath temperatures.

https://amt.copernicus.org/articles/18/7221/2025/amt-18-7221-2025-f06

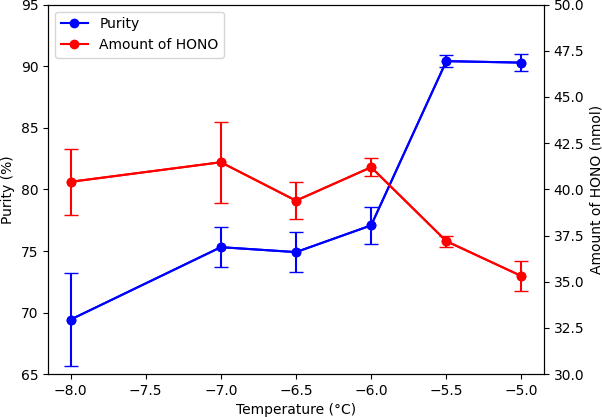

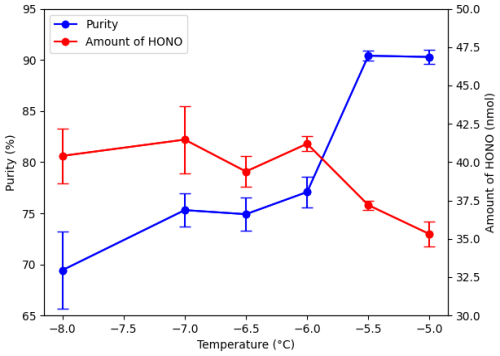

Figure 6Effect of capture bubbler bath temperature on purity and amount of HONO.

Download

3.3 Reactant bubbler bath temperature optimization

Along with capture bubbler bath temperature, the reactant bubblers' bath temperature was also changed to determine optimal HONO synthesis conditions. Different reaction bubbler temperatures will prefer HONO or NO2 production, as temperature influences the reaction kinetics and chemical equilibria. In these experiments, the capture bubbler bath was kept constant at the optimal 5.5 °C and the flow rate remained at 300 SCCM. At 30 °C, the system produced the highest HONO purity (90.4 ± 0.5 %), with the same ratio found above (9.44 : 1). Figure 7 shows how purity and amount of HONO changed over different reactant bubbler bath temperatures.

https://amt.copernicus.org/articles/18/7221/2025/amt-18-7221-2025-f07

Figure 7Effect of reactant bubbler bath temperature on purity and amount of HONO.

Download

3.4 Carrier gas flow rate optimization

Lastly, the flow rate was varied to determine optimal HONO production. At lower flow rates, less HONO will be generated as less HCl gas is able to transfer to the second bubbler and react with NaNO2. However, once flow rates reach a certain point, N2 gas will be moving through the bubblers too fast to transfer HCl into the NaNO2 bubbler to be reacted. High flow rates also lead to NO2 being pushed out of the NaNO2 bubbler without being reacted. In these experiments, the optimal capture bubbler bath temperature of 5.5 °C and reactant bubbler bath temperature of 30 °C was used and the flow rate through the system was systemically varied. Flow rate experiments revealed an optimal value at 200 SCCM, yielding a HONO : NO2 ratio of 25.53 : 1 (96.2 ± 0.5 % purity). Flow rates below or above this value resulted in either insufficient reaction or excess NO2 breakthrough. Figure 8 shows how purity and amount of HONO varied with different flow rates. Figure 9 shows the concentration of HONO and NO2 desorbed from the capture bubbler beads over time under optimal conditions of bubbler and capture temperatures, and carrier gas flow rate. Typically, it took 30–45 min for the glass beads to be completely desorbed of HONO and NO2. The more HONO and NO2 collected, the longer the desorption process took.

https://amt.copernicus.org/articles/18/7221/2025/amt-18-7221-2025-f08

Figure 8Effect of flow rate on purity and amount of HONO.

Download

https://amt.copernicus.org/articles/18/7221/2025/amt-18-7221-2025-f09

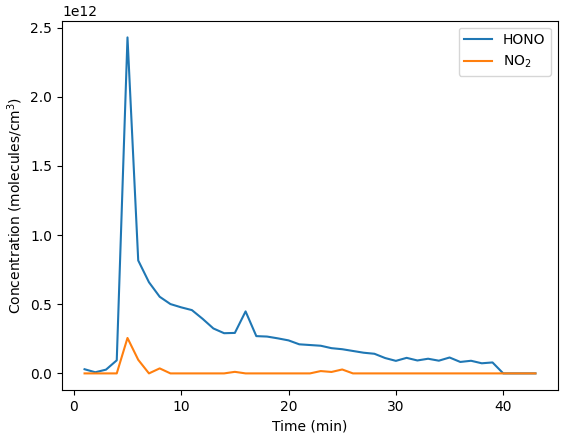

Figure 9Concentration of HONO and NO2 desorbing from the capture bubbler beads using the optimal HONO production method.

Download

3.5 Capture duration

HONO was collected on the beads of the final bubbler for 1 h in the general procedure, allowing for accurate comparison of different variables to optimize HONO production. However, extending the capture period from 1 to 2 h under optimal conditions resulted in a higher recovery of HONO (86 nmol) without compromising purity (95.0 ± 0.6 % purity). Adjusting the collection time provides flexibility in generating specific HONO quantities. Additionally, because HONO remains stable when frozen on the beads, it can be stored for later use, allowing for controlled release from the generation system by modifying the flow rate.

3.6 Moisture sensitivity

The water content of the NaNO2 slurry had a significant impact on product purity. Both saturated NaNO2 solutions and dry solid NaNO2 favoured increased NO2 production, resulting in lower HONO purities compared to the slurry used under optimal conditions. In the optimal preparation, enough water was added to wet the NaNO2 without fully dissolving it. Specifically, 200 g of NaNO2 was combined with 20 mL of distilled deionized water. To assess the effect of hydration on HONO production, experiments were conducted under otherwise optimal conditions using either a saturated NaNO2 solution or dry solid NaNO2. The saturated solution yielded HONO at 44.2 ± 2.1 % purity, and the solid NaNO2 produced a mixture with 56.4 ± 2.2 % purity, both significantly lower than the 96.2 ± 0.5 % purity achieved with the slurry. These findings highlight the critical importance of precisely controlling hydration in the reaction medium.

4 Conclusions

This study presents a reproducible, scalable method for generating high-purity HONO relative to NO2 using a multi-bubbler system with thermal separation. Through systematic optimization of bubbler temperatures, carrier gas flow, capture duration, and water content, the method achieved HONO purities exceeding 96 % at high and flexible yields. The use of a thermal “catch and release” system not only allows for the decoupling of HONO from interfering NO2, but also enables temporary storage of HONO in a condensed phase, offering flexibility in both concentration and timing of release.

This approach overcomes a longstanding limitation in acid displacement generation techniques, where NO2 co-production often complicates spectroscopic detection and quantification. When paired with broadband cavity-enhanced absorption spectroscopy (BBCEAS), this generation method supports sensitive, selective, and high-throughput HONO detection, with broad applicability in both laboratory and field-based research. The HONO source can be easily coupled to other detection platforms, including spectroscopic, chemical ionization, or mass spectrometric techniques, and thus enables comparative and intercalibration studies across multiple measurement frameworks.

Beyond BBCEAS calibration, this technique is particularly well-suited for use in environmental chamber experiments. The ability to produce HONO at controlled purity and concentrations enables detailed studies of its role in atmospheric chemistry, including its photolysis into OH radicals, a key driver in tropospheric oxidation. Previous chamber studies such as those at CESAM (Yi et al., 2021) and SAPHIR (Dixneuf et al., 2022) have focused primarily on HONO detection and budget analysis. CESAM has also conducted chamber studies that utilize HONO as the source for OH radical production (Lamkaddam et al., 2019; Picquet-Varrault et al., 2020). We present possibilities for similar chamber studies in a smaller environment, investigating not only HONO abundance, but also its contribution to OH formation and subsequent reaction kinetics within simulated atmospheric environments.

Future applications may include integration with field-deployable HONO sensors, automated sampling systems, or kinetic studies exploring the influence of HONO on radical-driven oxidation pathways. Ultimately, this method provides a robust, transferable foundation for investigating HONO chemistry across varied environments by enhancing our capacity to isolate, quantify, and mechanistically understand one of the atmosphere's most influential trace species.

Data availability

Datasets are presented in figures throughout the paper. Raw data from these resources are available on BYU's Scholar's archive (https://scholarsarchive.byu.edu/data/93, Harper et al., 2025).

Author contributions

APH: writing of the original manuscript, data collection and analysis, conceptualization. CEF: project design, conceptualization. ZG and KB: data collection and analysis. RT: project design, conceptualization, and funding acquisition. JCH: supervision and funding acquisition. All authors participated in the review and editing of the manuscript.

Competing interests

The contact author has declared that none of the authors has any competing interests.

Disclaimer

Publisher's note: Copernicus Publications remains neutral with regard to jurisdictional claims made in the text, published maps, institutional affiliations, or any other geographical representation in this paper. While Copernicus Publications makes every effort to include appropriate place names, the final responsibility lies with the authors. Views expressed in the text are those of the authors and do not necessarily reflect the views of the publisher.

Financial support

Student salaries and supplies were provided by the College of Physical and Mathematical Sciences at Brigham Young University. This work was supported by the National Science Foundation (grant no. 2321381). The funder played no role in the study design, data collection, analysis and interpretation of data, or the writing of this manuscript.

Review statement

This paper was edited by Haichao Wang and reviewed by two anonymous referees.
